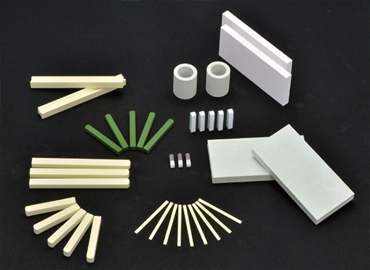

We have developed an abrasive that is especially suited to stainless steel polishing. The abrasive consists of a resin-based bond and white alumina grain. It is called RWA, and can be applied to both a CNC machine and a hand polishing machine. Round or block, either type can easily cut or make a groove according to your polishing conditions.
Applicable materials | Stainless steel(SUS), Titanium alloy, Aluminum alloy |
---|---|
Process | mirror polishing process, non-ferrous metal |
Product size | φ150 mm(Outer diameter) × 25 mm(height) × φ64 mm(Inner diameter) φ200 mm(Outer diameter) × 30 mm(height) × φ90 mm(Inner diameter) Block type: 200 mm × 75 mm × 30 mm We also offer hand polisher type which fit into electric hand polishing machine or air polisher. |
Grit | 80, 120, 180, 220, 320, 400, 600, 800, 1000, 1599, 3000 |
EN-standard Steel no. k.h.s DIN |
EN-standard Steel name |
SAE grade | UNS |
---|---|---|---|
440A | S44002 | ||
1.4112 | 440B | S44003 | |
1.4125 | 440C | S44004 | |
440F | S44020 | ||
1.4016 | X6Cr17 | 430 | S43000 |
1.4408 | G-X 6 CrNiMo 18-10 | 316 | |
1.4512 | X6CrTi12 | 409 | S40900 |
410 | S41000 | ||
1.4310 | X10CrNi18-8 | 301 | S30100 |
1.4318 | X2CrNiN18-7 | 301LN | N/A |
1.4307 | X2CrNi18-9 | 304L | S30403 |
1.4306 | X2CrNi19-11 | 304L | S30403 |
1.4311 | X2CrNiN18-10 | 304LN | S30453 |
1.4301 | X5CrNi18-10 | 304 | S30400 |
1.4948 | X6CrNi18-11 | 304H | S30409 |
1.4303 | X5CrNi18-12 | 305 | S30500 |
X5CrNi30-9 | 312 | ||
1.4541 | X6CrNiTi18-10 | 321 | S32100 |
1.4878 | X12CrNiTi18-9 | 321H | S32109 |
1.4404 | X2CrNiMo17-12-2 | 316L | S31603 |
1.4401 | X5CrNiMo17-12-2 | 316 | S31600 |
1.4406 | X2CrNiMoN17-12-2 | 316LN | S31653 |
1.4432 | X2CrNiMo17-12-3 | 316L | S31603 |
1.4435 | X2CrNiMo18-14-3 | 316L | S31603 |
1.4436 | X3CrNiMo17-13-3 | 316 | S31600 |
1.4571 | X6CrNiMoTi17-12-2 | 316Ti | S31635 |
1.4429 | X2CrNiMoN17-13-3 | 316LN | S31653 |
1.4438 | X2CrNiMo18-15-4 | 317L | S31703 |
1.4539 | X1NiCrMoCu25-20-5 | 904L | N08904 |
1.4547 | X1CrNiMoCuN20-18-7 | N/A | S31254 |
No. 0 | Hot rolled, annealed, thicker plates |
---|---|
No. 1 | Hot rolled, annealed and passivated |
No. 2D | Cold rolled, annealed, pickled and passivated |
No. 2B | Same as above with additional pass-through highly polished rollers |
No. 2BA | Bright annealed (BA or 2R) same as above then bright annealed under oxygen-free atmospheric conditions |
No. 3 | Coarse abrasive finish applied mechanically |
No. 4 | Brushed finish |
No. 5 | Satin finish |
No. 6 | Matte finish |
No. 7 | Reflective finish |
No. 8 | Mirror finish |
No. 9 | Bead blast finish |
No. 10 | heat colored finish-wide range of electropolished and heat colored surfaces |
