areaCut5

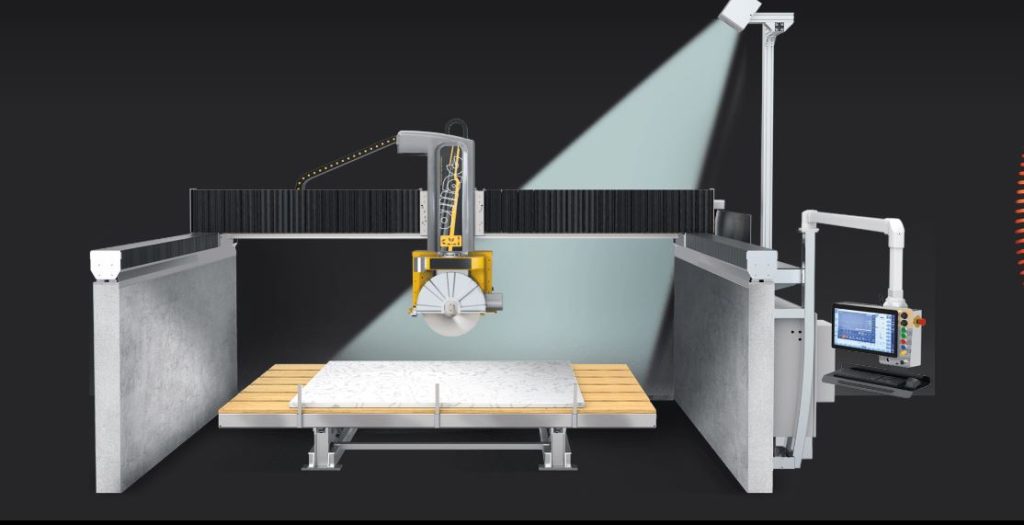

Areacut5 is a high-performance cutting machine designed to deliver precision, efficiency, and reliability in stone and ceramic processing. It is equipped with advanced multi-axis technology that allows smooth and accurate cutting for complex shapes and large materials. The machine is built with a strong structure and powerful motor to ensure stable performance even in demanding industrial environments. Areacut5 improves productivity by providing faster operations while maintaining high cutting accuracy and quality. Its modern design and intelligent control system make it an ideal solution for industries that require precise and efficient material processing.
| Specification | Unit | Value |
|---|---|---|
| Interpolated Controlled Axes | n° | 5 |
| Ø Maximum Diameter Saw | mm | 625 |
| Cutting Thickness | mm | 200 |
| Ø Minimum Diameter Saw | mm | 350 |
| Axis X – Transversal Stroke | mm | 3,600 |
| Axis Y – Longitudinal Stroke | mm | 2,500 |
| Axis Z – Vertical Stroke | mm | 400 – 700 |
| Axis C – Rotation | ° | 0° – 380° |
| Axis B – Tilting | ° | 0° – 90° |
| X Axis Movement Speed | m/min | 0 – 45 |
| Y Axis Movement Speed | m/min | 0 – 40 |
| Z Axis Movement Speed | m/min | 0 – 15 |
| Table Sizes | mm | 3,600 x 2,000 + 500 |
| Function of the Tilting Bench | Included | |
| Motor Power | 24.4 HP (S6) | |
| Tool Attachment | 1/2 GAS | |
| Rotating Control by Inverter | RPM | 0 – 6,000 |
| Water Consumption | 40 L/min | |
| On Demand | ||
| Electrospindle for Incremental Cutting Ceramic | 0 – 14,000 / 3.5 HP (S6) |
